Single vacuum toilet system

Working principle:Vacuum toilet is a kind of toilet. Through the air pressure difference generated by the toilet system, the dirt in the toilet is sucked away in the form of air suction, so as to redu

Working principle:

Vacuum toilet is a kind of toilet. Through the air pressure difference generated by the toilet system, the dirt in the toilet is sucked away in the form of air suction, so as to reduce the use of flushing water. It can greatly save flushing water. The traditional water-saving toilet stipulated by the state is 6L / time, and after using the vacuum public toilet, each flushing is < 0.8l/time: completely solve the odor problem of the toilet with small space and air flow Vacuum toilets are often found in the environment lacking flushing water, such as civil aviation airliner, cruise ship, passenger train, etc.

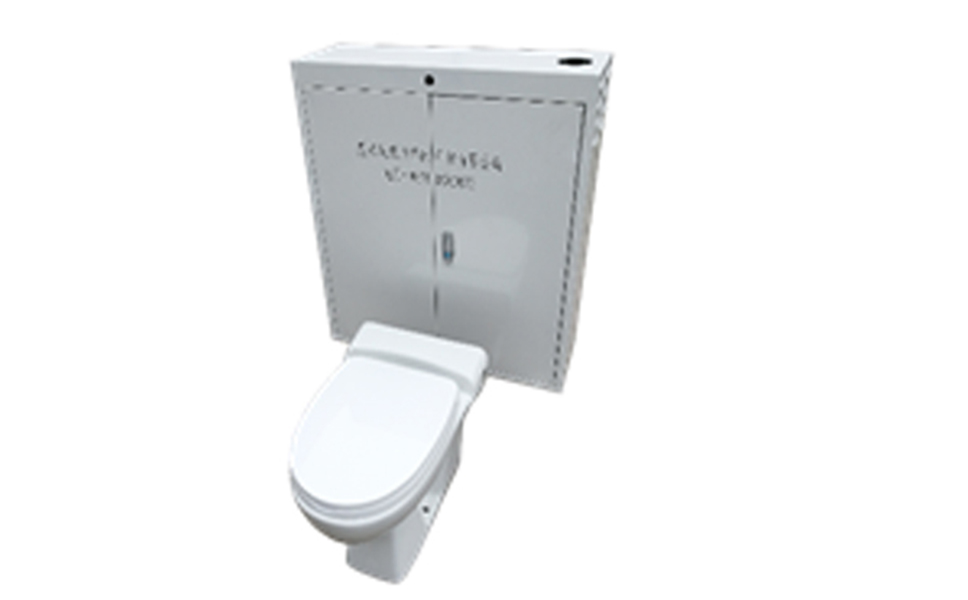

Single vacuum toilet system:

1. Integrated design, including independent vacuum system, with independent work, independent of other systems and high reliability.

2. Using vacuum adsorption, the single consumption of half cup water can achieve good flushing effect, absorb the dirt and the peculiar smell at the same time, so as to ensure the fresh environment.

3. The pressure discharge is not limited by the installation environment, and can be drained in the same layer and upward.


Product features:

High pressure washing, vacuum suction, dirt crushing, pressure discharge, vacuum deodorization, no peculiar smell, less water consumption, simple and reliable use

Mier enterprise content manager system | Mier CMS


Compared with the existing flush toilet, the vacuum toilet has the following advantages:

Thoroughly solve the odor problem

The traditional sanitary ware is water flushing type, and some of the odor will stay in the air, while the negative pressure is from the outside to the inside, and the odor will not expand to the air, so as to thoroughly solve the odor problem of small space and airless toilet.

Can greatly save flushing water

The traditional water-saving toilet set by the state is 6L / time, and after using the vacuum public toilet, each flushing is less than 0.8L/time;

Simplified installation procedure, cost saving

Standardized design, easy installation, use of pressure blowdown, not limited by the installation level and blowdown conditions. In addition. Due to the use of negative pressure source, the conveying pipe diameter can be greatly reduced, about 1 / 3 of the original.

Not easy to block, stable operation

The negative pressure source of -0.045 ~ -0.075 can ensure enough power to transport raw water.


Main parameters:

Water consumption: 0.5L-1L/time

Power consumption: 0.005 degree / time

Blowdown mode: vacuum suction, no gravity discharge

Blowdown distance: up to 6.5m

Requirements for underground pipe network: no need to bury underground pipe network

Convenient for centralized processing: convenient for centralized processing

Vacuum equipment size: 780 * 250 * 850
