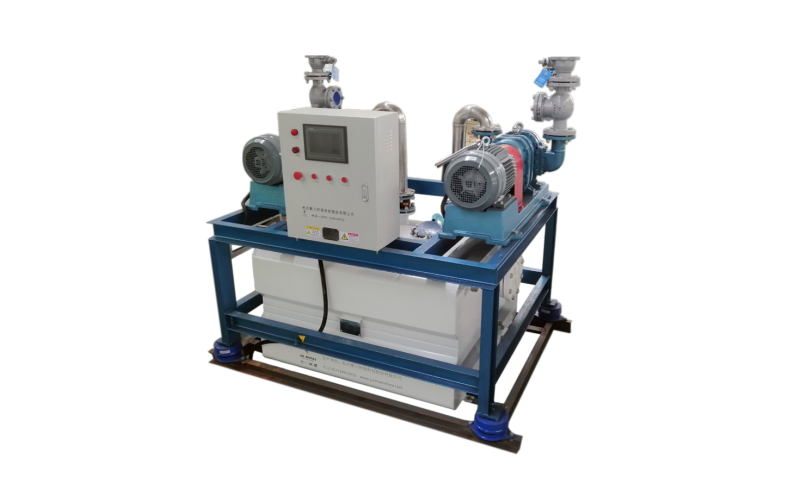

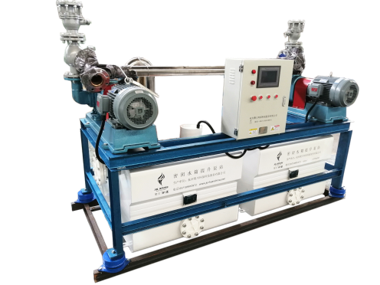

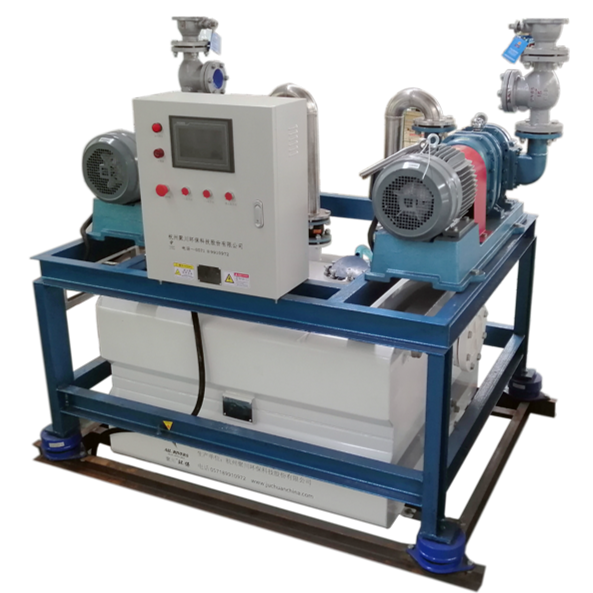

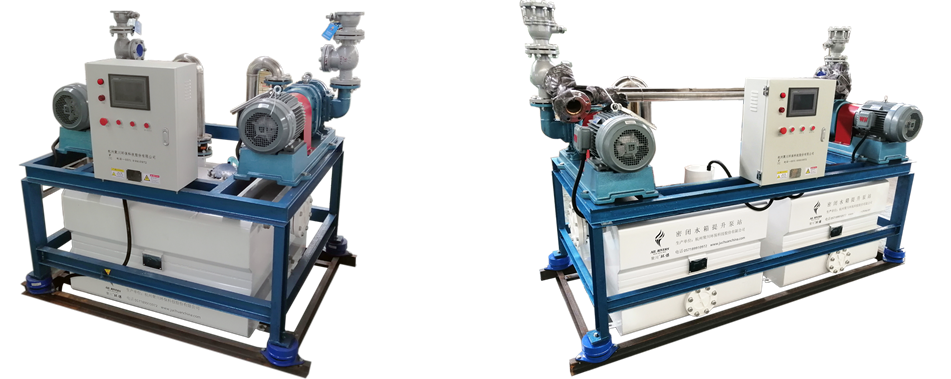

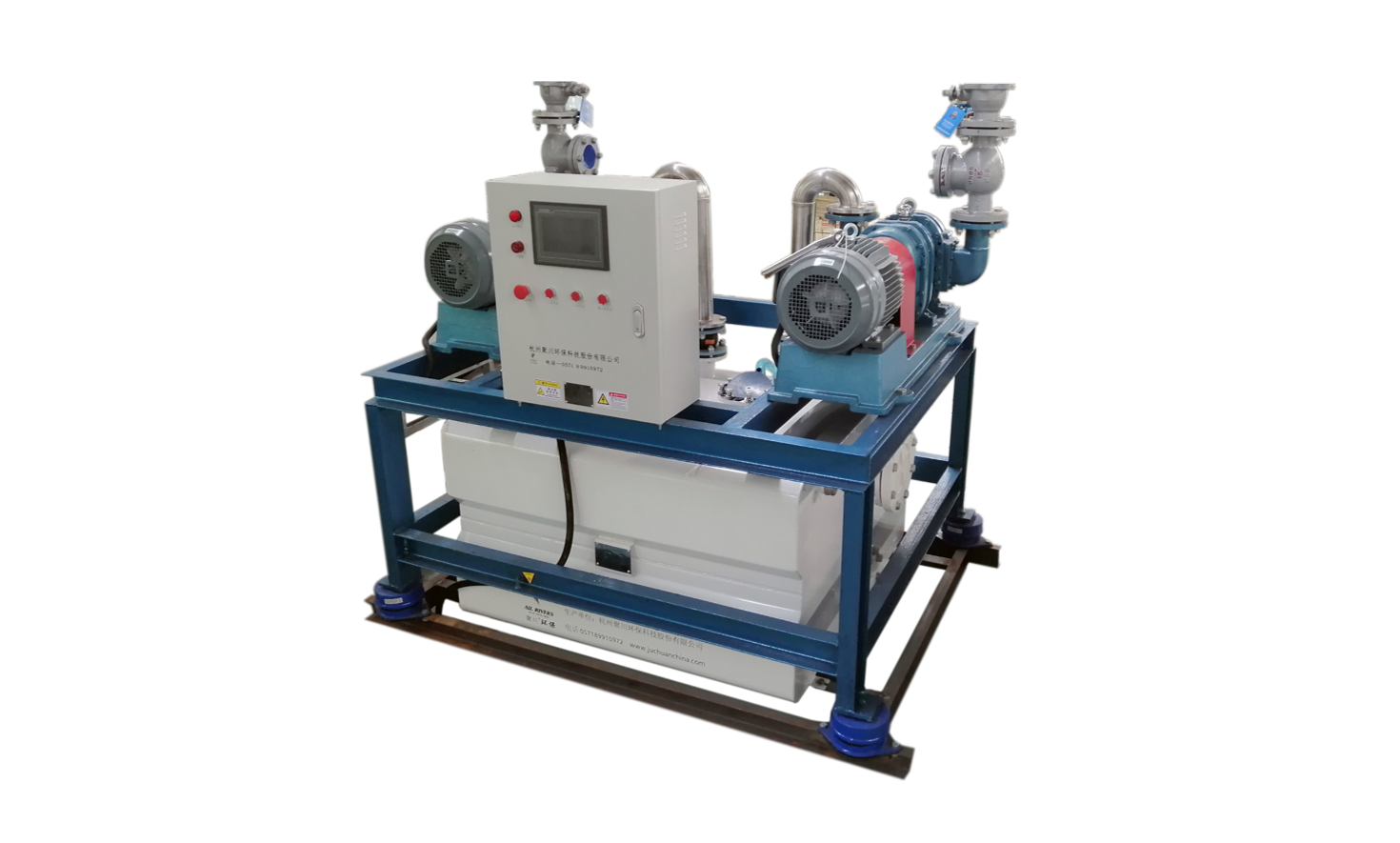

Cam closed lifting pump station

MB type closed lifting station is a complete system composed of sewage pump, water collecting tank, control device and relevant pipe fittings and valves, which is used to lift and transport the waste


MB type closed lifting station is a complete system composed of sewage pump, water collecting tank, control device and relevant pipe fittings and valves, which is used to lift and transport the waste water lower than the sewer or far away from the municipal pipe network. Its working principle is the same as that of the traditional water collecting well: waste water flows into the water collecting tank automatically through the inlet of the whole set of equipment, after reaching the starting water level of the equipment, the equipment starts automatically, and the sewage is lifted and discharged to the municipal pipe network.

Mier enterprise content manager system | Mier CMS

Product advantage

1. The principle of the system is simple, easy to learn and use, and the requirements for design and installation are not high;

2. Good airtightness. The airtight water tank is an integral injection tank, only the opposite interface and maintenance port of the pipeline are reserved, which can ensure airtightness;

3. Maintenance is simple. The closed sewage lifting pump station with cam pump is small in volume, and the personnel can operate directly beside the equipment, so it is no longer necessary to enter the collecting well with poor working environment, avoiding the potential danger and providing a relatively comfortable working space for the maintenance personnel.

4. Avoid pollution. Even when encountering extreme situations such as fire fighting, rainstorm and flood, the basement drainage is not smooth, the accumulated water submerges the integrated blowdown equipment, and the sewage in the equipment will not leak, resulting in pollution of the surrounding environment.

5. Design advantages

  •  High lift, strong self suction

  •  Houble axis design, no shaft jamming

  •  The medium can enter and exit in both directions, without positive and negative reversal

  •  Large diameter with shearing function

  •  Transportable gas, liquid and solid three-phase mixed medium

 with cabin sweeping function

  •   Electrode sensor and pneumatic sensor are used for mutual standby, with higher safety factor
