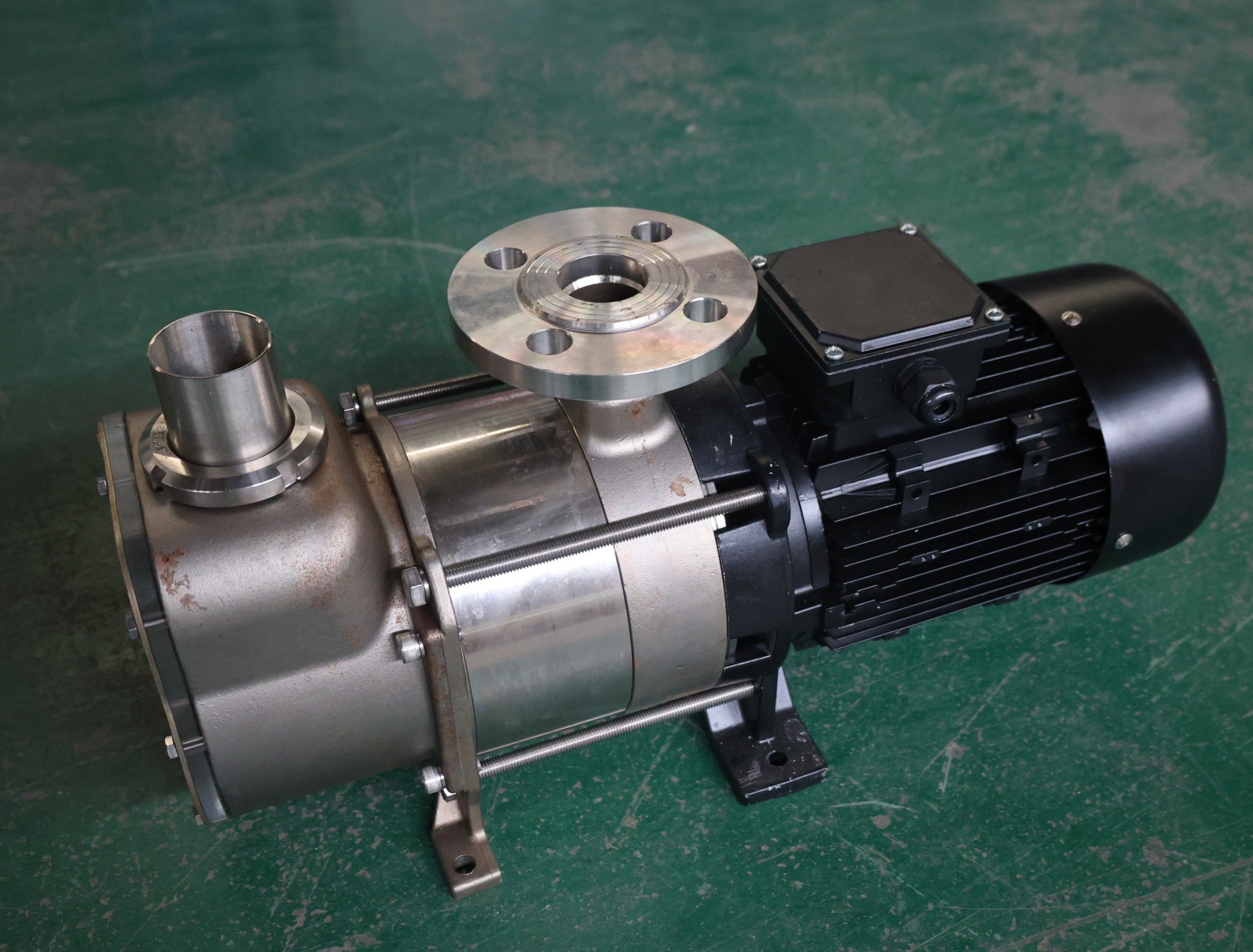

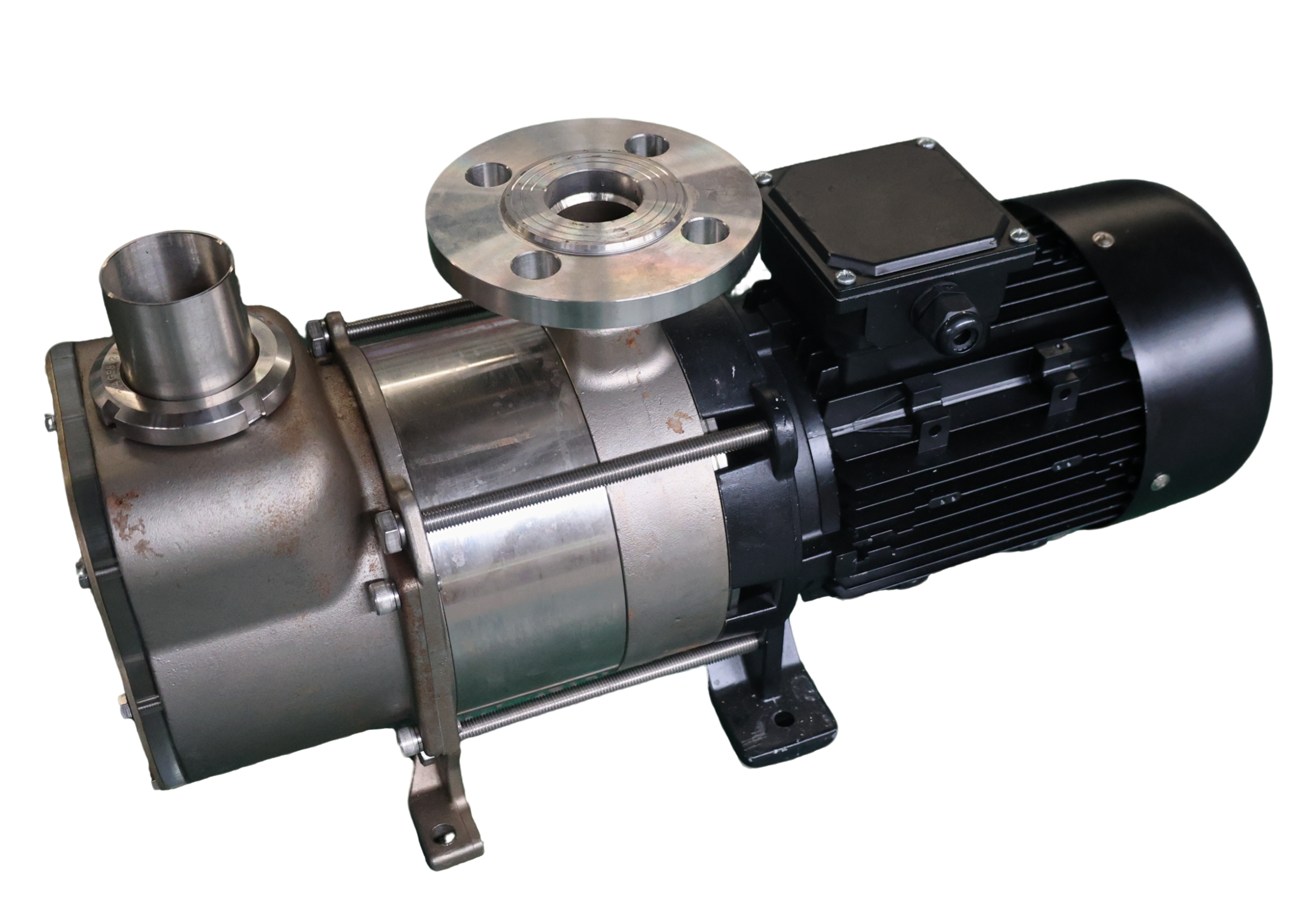

Juchuan vacuum churning sewage pump is the most compact, efficient and reliable vacuum generator for vacuum sanitation systems. The pump creates a vacuum, crushes sewage and discharges it in one operation.

uHigh efficiency in transporting wastewater

uSmall footprint, light weight, easy to install quickly and flexibly

uOnline installation, vacuum suction pressure discharge

uMultiphase design for pumping any combination of air, black sewage and grey sewage

uLow energy consumption

uHigh quality, low life cycle cost

MetInfo enterprise content manager system | MetInfo CMS

Application Scenarios of Vacuum Crushing Sewage Pump

This online vacuum crushing sewage pump from Hangzhou Juchuan Environmental Protection is specially designed for small - scale vacuum drainage systems. Its main application scenarios are as follows:

1. Marine Scenarios

It is suitable for small and medium - sized ships such as yachts and fishing boats. With its compact design, it can be installed in the cabin to crush impurities like feces and paper towels in domestic sewage, preventing pipeline blockage. It also supports the renovation of ship toilets and the treatment of bilge sewage.

2. Mobile Toilet Scenarios

It is applied to outdoor mobile toilets in scenic spots, exhibitions and construction sites. Its small size and light weight facilitate overall movement with the toilet. For emergency mobile toilets in disaster - hit areas, it can be quickly connected to realize immediate sewage crushing and discharge.

3. Vehicle - Mounted Scenarios

It is used in RV sewage systems. The compact size (e.g., Model 15MBD: 557×214×273mm) saves space. It is also suitable for small sanitation suction trucks to collect sewage from decentralized vacuum drainage points.

4. Offshore Operation Platform Scenarios

It is installed in small offshore platforms like temporary exploration platforms. The 316L pump casing and bronze impeller resist seawater corrosion, reducing maintenance costs. It is also used for the temporary drainage of domestic gray water and rainwater on the platform.

Specification and model

MetInfo enterprise content manager system | MetInfo CMS

Model	Flow Rate	Head	Flushing Capacity (50Hz/60Hz)	Power	Key Materials	External Size (L×W×H, mm)
15MBD	15m³/h	10m	120/150 times/hour	2.2KW	Pump casing: Bronze - 316L/316L; Impeller: Bronze	557×214×273
25MBA	25m³/h	15m	190/240 times/hour	3KW	Pump casing: 316L; Impeller: Bronze	689.5×200×278.5
M01	25m³/h	15m	190/240 times/hour	3KW	Pump casing: 316L; Impeller: Bronze	723×198×309
M01 Quick - connect	25m³/h	15m	190/240 times/hour	3KW	Pump casing: 316L; Impeller: Bronze	723×198×390
XL01	78m³/h	-	520/600 times/hour
