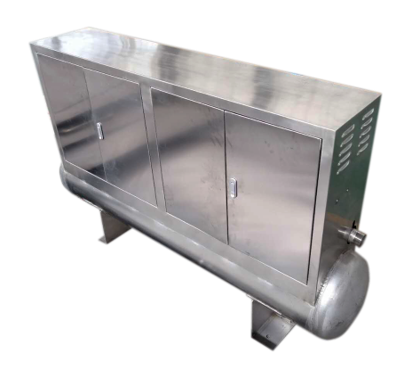

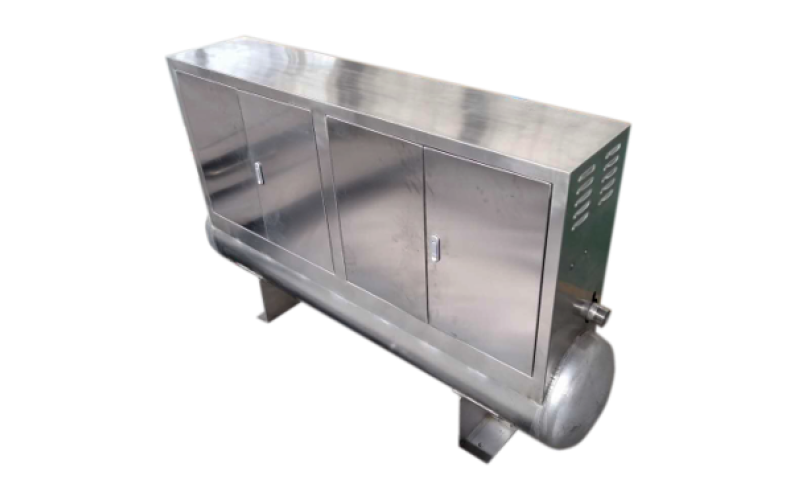

Low level drain equipment

The air pressure drainage device is to use the negative pressure principle to pump the water in the water sump to dry, and then discharge the absorbed waste water to the drainage ditch or nearby base

The air pressure drainage device is to use the negative pressure principle to pump the water in the water sump to dry, and then discharge the absorbed waste water to the drainage ditch or nearby base well through the positive air pressure difference;

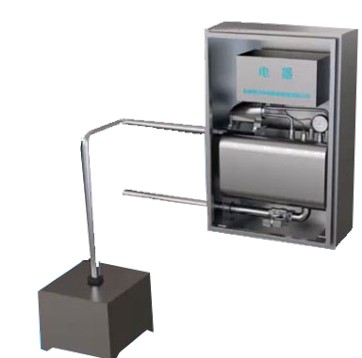

It is mainly composed of water collecting tank, filter type water absorption probe, electrical control and relevant pipelines.


Mier enterprise content manager system | Mier CMS


Product features:

1. Simple installation: without adding sump, the liquid level sensor can be placed at the lowest part of open ditch in each drainage section to realize suction.

2. Standby mechanism: double liquid level sensor, start and stop will not fail.

3. Strong controllability: there is no need for personnel on duty, and the self-contained remote control program can monitor the suction point of each equipment remotely from time to time.

4. High efficiency: low liquid level control can drain the water inside the foundation pit without any residue;

5. Good effect: the lowest liquid level is only 5cm.


Equipment selection parameters



Model

Power(W)

Suction stroke(m)

Lift(m)

Flow

L/H

Volume of sewage tank(L

Voltage

V/Hz

Standby power(W

QY400

180

5

30

800

37

220/50

15

QY1400

550

          5

50

1400

40

  220/50

QY2000

750

             5

50

2000

40

  220/50

QY3000

1100

             5

50

3000

85

  220/50

QY4200

1500

             5

50

4200

85

  220/50

QY-T6000

2200

             5

50

6000

85

  220/50

QY-T8400

3000

             5

50

8400

85

  220/50

QY20000

6000

            5

50

20000

205

380/50


Remarks:

1. QY400, QY1400 and QY2000 are integrated structures of waste water tank and control system

2. The structure of QY3000 and QY4200 is the split structure of waste water tank and control system.

2. QY3000 and QY4200 control systems can be equipped with two waste water tanks and filters with double flow.
